Jeio Tech

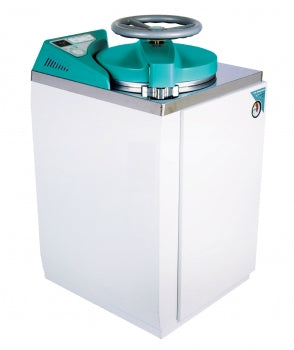

Vertical Type Autoclaves

Vertical Type Autoclaves

AAHL1015K

$7,431.00
$8,257.00 $7,431.00
Sale Sold out
Shipping calculated at checkout.

Size
  • Microprocessor controller and temperature calibration function allows for high precision temperature control.
    - Sterilization temperature at 110 to 123°C
    - Melting* temperature at 60 to 100°C
    * Liquefaction of coagulated agar media.
  • Automatic sterilization system for unattended operation.
    - Heating > Check safe > Sterilization > Sterilization safe > Exhausting > End
  • Convenient operation modes for various uses.
    - Standard modes and program modes are listed in detail as below tables.
  • Temperature calibration function.
Standard modes Temp.(°C) Time(min.)
Decontamination 121 35
Solids sterilization 121 20
Liquids sterilization 121 15
Melting 100 30



Program modes Temp.(°C) Time(min.)
Sterilization 1 110 to 123 1 to 999
Sterilization 2 110 to 123 1 to 999
Liquid sterilization 110 to 123 1 to 999
Melting 60 to 100 1 to 999



  • Conveniently monitored by an independent control display, sterilization process display, and pressure gauge.
    - VFD for visualization of temp, pressure(optional), timer, warning alert checks.
    - LED lamps for sterilization process check.
    - Easy pressure check with the standard gauge attached to the front.
  • Vertical type autoclaves which allow for top loading are suitable for high volume sterilization.
    - Baskets are stackable two high or even more levels, which secure inside the chamber space requirements.
  • Low-maintenance
    - The chamber is constructed of stainless steel which is superiorly resistant to corrosion.
    - Easy to replace silicone gasket.
  • Convenient documentation with the optional data recorder.
    - Dot type recorder(6 point) allows for precise documentation.
  • Mechanical safety devices
    - Over current protection.
    - Over temperature protection by automatic power cutoff.
    - Over pressure protection by automatic and manual safety valve.
  • Safety warning systems
    - Over temperature warning.
    - Low temperature warning.
    - Low water level warning.
    - Low heat warning if the temperature does not reach the sterilization or melting temperature.
    - Sterilization fail warning if the operation is unexpectedly stopped during sterilization process.
  • Slide opening door with plastic cover of low thermal conductivity prevents burns from the contact.
Model ST-50G ST-65G ST-85G ST-105G
Microprocessor PID control Yes Yes Yes Yes
Chamber volume (L/ cu ft) 50/1.76 65/2.29 85/3.0 105/3.7
Sterilization temp. (℃ / ℉) 110 to 123 / 230 to 253.4 110 to 123 / 230 to 253.4 110 to 123 / 230 to 253.4
110 to 123 / 230 to 253.4
Melting temp. (℃ / ℉) 60 to 100 / 140 to 212 60 to 100 / 140 to 212 60 to 100 / 140 to 212
60 to 100 / 140 to 212
Sterilization at 121℃ (kg/cm2) 1.1 to 1.2 1.1 to 1.2 1.1 to 1.2 1.1 to 1.2
Gauge range in analog (Mpa) - 0.1 to 0.6 - 0.1 to 0.6 - 0.1 to 0.6 - 0.1 to 0.6
Permissible altitude (m) Up to 800 Up to 800 Up to 800 Up to 800
Over temperature protector / Pressure safety valve / Over current protector Yes Yes Yes Yes
Warning alert (over temp. / low temp. / low heat / sterilization fail / low water level) Yes Yes Yes Yes
Timer 0 to 999 min. 0 to 999 min. 0 to 999 min. 0 to 999 min.
Interior (WxH) (mm / inch) 400 x 458 / 15.75 x 18.03 400 x 558 / 15.75 x 21.97 400 x 758 / 15.75 x 29.84
400 x 908 / 15.75 x 35.75
Exterior (W×D×H) (mm / inch) 624 x 672 x 870
/ 24.57 x 26.46 x 34.25		 624 x 672 x 971
/ 24.57 x 26.46 x 38.23		 624 x 672 x 1083
/ 24.57 x 26.46 x 42.64
624 x 672 x 1233
/ 24.57 x 26.46 x 48.54
Exterior with exhaust tank (W×D×H) (mm / inch) 722 x 672 x 870
/ 28.42 x 26.46 x 34.25		 722 x 672 x 971
/ 28.42 x 26.46 x 38.23		 722 x 672 x 1083
/ 28.42 x 26.46 x 42.64
722 x 672 x 1233
/ 28.42 x 26.46 x 48.54
Door max. opening (W×D×H) (mm / inch) 1012 x 672 x 882
/ 39.84 x 26.46 x 34.72		 1012 x 672 x 983
/ 39.84 x 26.46 x 38.7		 1012 x 672 x 1095
/ 39.84 x 26.46 x 43.11
1012 x 672 x 1245
/ 39.84 x 26.46 x 49.01
Basket (ØxH) (mm / inch) 380 x 180 / 14.96 x 7.09 380 x 230 / 14.96 x 9.05 380 x 330 / 14.96 x 12.99
380 x 405 / 14.96 x 15.94
Net weight (Kg / lbs) 94.5 / 208.34 99.5 / 219.36 104 / 229.28 110 / 242.51
Electrical requirements (230V, 50/60 Hz) 14.3A 14.3A 14.3A 21.3A
Cat. No. AAHL1015K AAHL1025K AAHL1035K AAHL1045K



Find accessories here.
