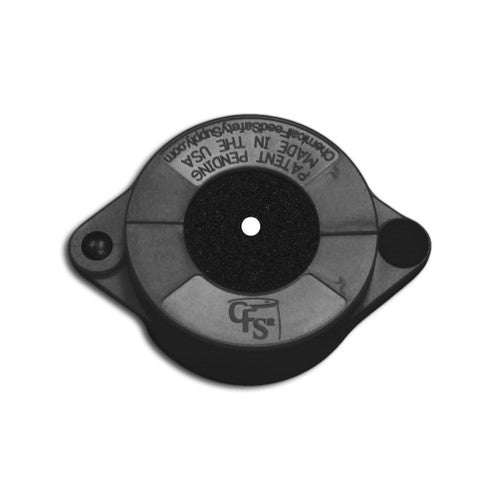

Drum Feed Safety Clamp, Fixed Size Filter for 3/8" Drum Probe, Various Colors (CFS-1118)

Drum Feed Safety Clamp, Fixed Size Filter for 3/8" Drum Probe, Various Colors.

Cleaning & Sanitation Drum Lock Safety Clamp with Black Chemical filter; used solely for applications where a 3/8" solid drum probe is used for feeding chemicals;. Chemically resistant to high-strength acids and bases, this is our most application-specific model. Ideal for anyone who uses chemical feeds and Clean-in-place (CIP) methods.

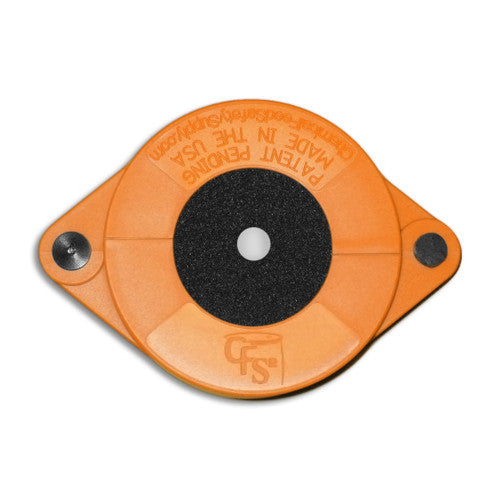

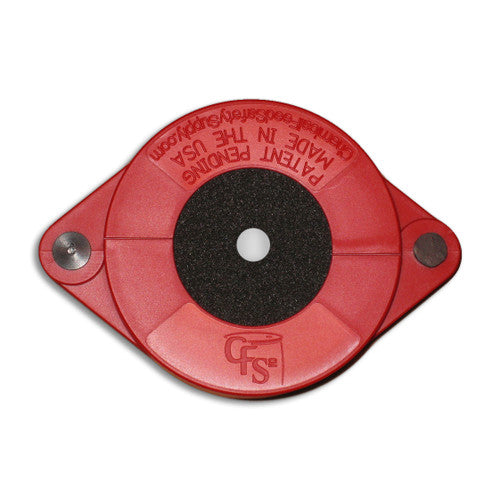

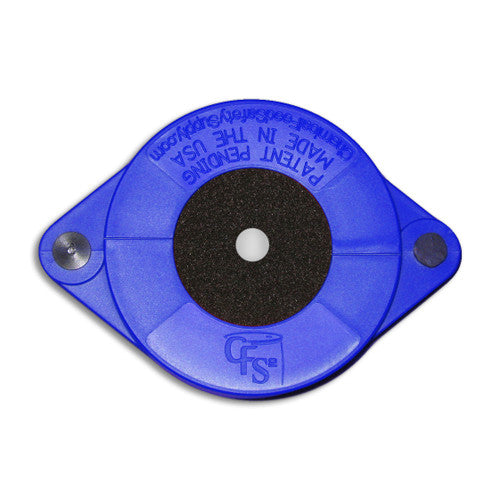

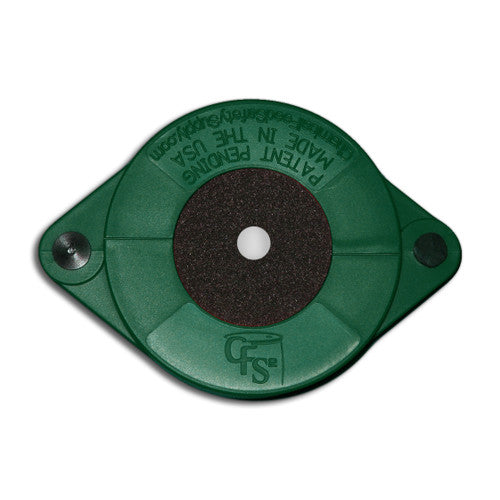

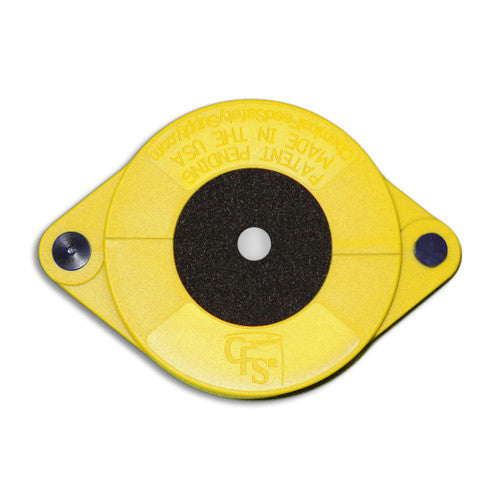

A safe, fast, effective way to increase the safety of your chemical feed system. Outer drum-lock clamp housing is made of polypropylene and is available in 7 colors to reduce cross-contamination of chemicals, by color-coding safety devices to chemical drums. This Clamp is used when you want to store a chemical drum that has been opened and the opening needs to be closed or re-sealed.

• Only for use with plastic drums. Do not use with metal drums.
• As a general rule, these drum locks fit standard plastic UN chemical drums between 15-gallon and 55-gallon that feature a 2" opening with a flange. The precise size range that it will fit is 85mm-92mm. If the widest part of your drum opening is within this range, the clamp will fit securely.
  • for Canadian drums, we can install an adhesive foam strip at your request to enable the clamp to fit on the slightly smaller opening typically found on Canadian-made drums.
• Allows you to close off an open chemical drum bung and reduce vapors and harmful gasses from escaping
• Includes an enhanced, cross-linked, closed-cell, high-density copolymer filter that provides optimum chemical resistance
• Includes 1 EPDM tapered plug
• Recommended for cleaning & sanitation applications using a 3/8" drum probe
• Clamp can be applied or removed at any time during chemical feed operation

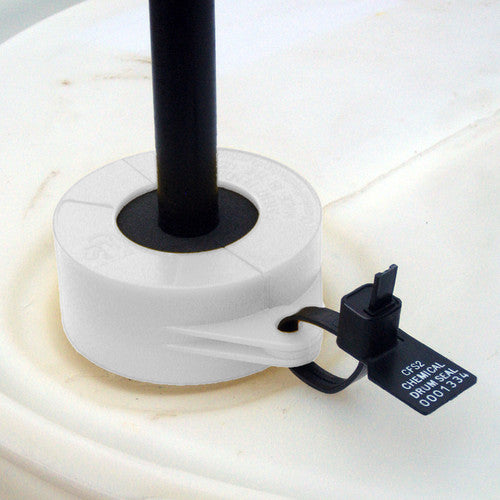

• Can be used in conjunction with a Chemical Drum Seal Tag (# CFS-1014_10pk), for compliance with the FDA FSMA (Food Safety Modernization Act). It allows you to seal a chemical drum, while feeding product.

Density rating: LD45

Default hole size: 16mm

• Recommended for all water treatment applications, including where a high-strength acid or base are involved
• Recommended for cleaning & sanitation applications, including feed systems where multiple tubes and/or probes are being used in the same bung opening
• Clamp can be applied or removed at any time during chemical feed operation
• Can be used in conjunction with a Chemical Drum Seal Tag (# CFS-1014_10pk), for compliance with the FDA FSMA (Food Safety Modernization Act). It allows you to seal a chemical drum, while feeding product.

Benefits:

• Easy to use and cost-effective solution to Chemical Feed Problems
• Reduces risk of direct chemical exposure due to "splashing"
• Improves "Indoor Air Quality" (IAQ) - helpful for OSHA inspections
• Reduces contamination of the chemical product by helping to eliminate any dirt, debris, moisture, or environmental hazards from entering the drum
• Aids to reduce cross-contamination by using color-coded Safety Clamps on chemical drums.
• Creates a "greener" work environment, which aids employee's health
• Solid Filter and Drum Seal Tags enable proper Lock out, Tag out procedure for safe storage of chemicals

Drum Lock Safety Clamp is used in the following industries:

• Beverage Processing
  • Dairy
  • Brewery / Distillation
  • Water / Soda / Etc.
• Institutional
  • General water treatment
  • Pools & Spas
  • Car Washes
• Hospitality
• Pharmaceuticals
• Chemical Processing
• Power Generation / Utilities
• Refining
• Mining
• Ethanol
• Food Manufacturing
• Semi-Conductor
• Pulp & Paper
• Health Care
• Laundry
• Design & Build Engineering Services
• Contract Manufacturing
