8" ECO Funnel® EF2 system with 10 Liter Carboy, 83mm (83B) closure (EF2-8-83B-SYS)

8" ECO Funnel® EF2 system with 10 Liter Carboy, 83mm (83B) closure (EF2-8-83B-SYS)

EF2-8-83B-SYS

$275.00
$308.30 $275.00
Sale Sold out
Shipping calculated at checkout.

Color

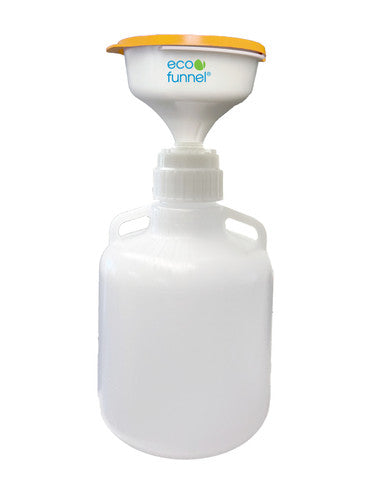

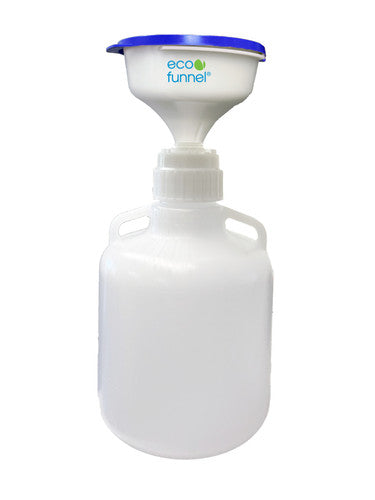

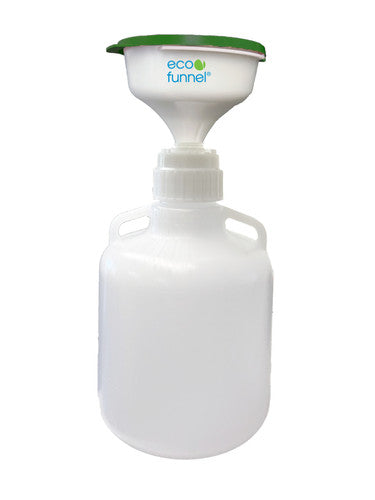

This 8" ECO Funnel® system includes a 10 Liter Nalgene® LDPE carboy with an 83B closure. The EF2 is the newest version of our 8" ECO Funnel. This patented safety funnel features a long tube to prevent evaporation, a short airlock tube, and a gasket to help keep fumes safely contained. The larger 8" ECO Funnel includes an additional safety feature to prevent over-filling that the 4" version does not have; the secondary air-lock tube creates a small air gap in your waste container, which causes fluid to back up temporarily into the funnel when the container is full. After the screw cap adapter is loosened, the remaining fluid will safely flow into the container and not spill.

Dimensions: Lid Open 10.5"L x 10.5"W x 30.5"H
Dimensions: Lid Closed 10.5"L x 10.5"W x 22"H
Funnel 8" ECO Funnel® EF2-8-83B
Container 10 Liter LDPE Carboy EC-20010
Secondary Container optional EPA Compliant secondary SC-83B



Specifications:

  • 8" diameter opening
  • Detachable tube reduces evaporation
  • Secondary air-lock tube
  • 2000 mL fluid capacity
  • Latching lid with inner gasket
  • Chemical resistant HDPE construction
  • Removable stir-bar catcher screen
  • Can be custom fitted with up to 6 HPLC waste lines
  • Funnel top without the stem measures 9" W x 11"L
  • Made in the USA
